1. Locate the Characteristics node under the “Polar” node.
2. Create a New Characteristic.
a. Open the Characteristic Properties for "Characteristic A".
i. Change the characteristic label to “Label”.
ii. Change the color if desired.
iii. Click Associate.
(1) In the Associations dialog:
(a) Select the association Feature>Properties>Label.
(2) Click Ok.
iv. Click Ok.
b. Locate the Instructions node under "Label".
i. Define the instructions as:
3. Create a New Characteristic.
a. Open the Characteristic Properties.
i. Change the characteristic label to “Ref”.
ii. Change the color if desired.
iii. Click Associate.
(1) In the Associations dialog:
(a) Select the association Feature>Reference>Construct Sub Feature>Label.
(2) Click Ok.
iv. Click Ok.
b. Locate the Instructions node under "Ref".
i. Define the instructions as:
4. Create a New Characteristic.
a. Open the Characteristic Properties.
i. Change the characteristic label to “Cons”.
ii. Change the color if desired.
iii. Click Associate.
(1) In the Associations dialog:

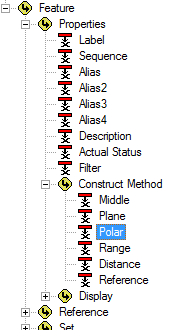

(a) Select the association Feature>Properties>Construct Method>Polar.
(2) Click Ok.
iv. In the Default String field, enter "Range".
v. Click Ok.
b. Delete all Undefined instructions for the "Cons" characteristic, if desired.
5. Create a New Characteristic.
a. Open the Characteristic Properties.
i. Change the characteristic label to “Nom Polar”.
ii. Change the color if desired.
iii. Click Associate.
(1) In the Associations dialog:
(a) Select the association Feature>Characteristics>Polar>Nominal.
(2) Click Ok.
iv. Set the Type Validation to "Real (decimal value)".
v. Click Ok.
b. Locate the Instructions node under "Nom Polar".
i. Define the instructions as:
6. Duplicate the characteristic "Nom Polar".
a. Open the Characteristic Properties.
i. Change the characteristic label to “Upper Polar”.
ii. Change the color if desired.
iii. Click Associate.
(1) In the Associations dialog:

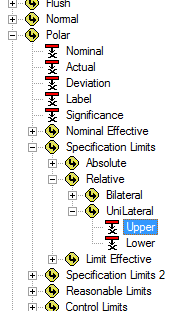

(a) Change the association to Feature>Characteristics>Polar>Specification Limits>Relative>UniLateral>Upper.
(2) Click Ok.
iv. Click Ok.
b. Locate the Instructions node under "Upper Polar".
i. Change the first instruction string from ",pol=" to ",upol="
