Yoke Step 6: Define a Feature

Home Previous Next

1.     Locate the node labeled “Feature A” under the Features node.

2.     Double-click "Feature A".

a.     In the Feature Properties dialog:

i.        Change the feature label to “X”.

ii.      Change the color if desired.

iii.    Select the check box "Is MasterTie".

iv.    Click Ok.

3.     Locate the Instructions node under "X".

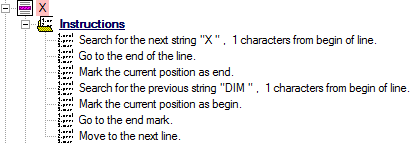

a.     Define the instructions as:

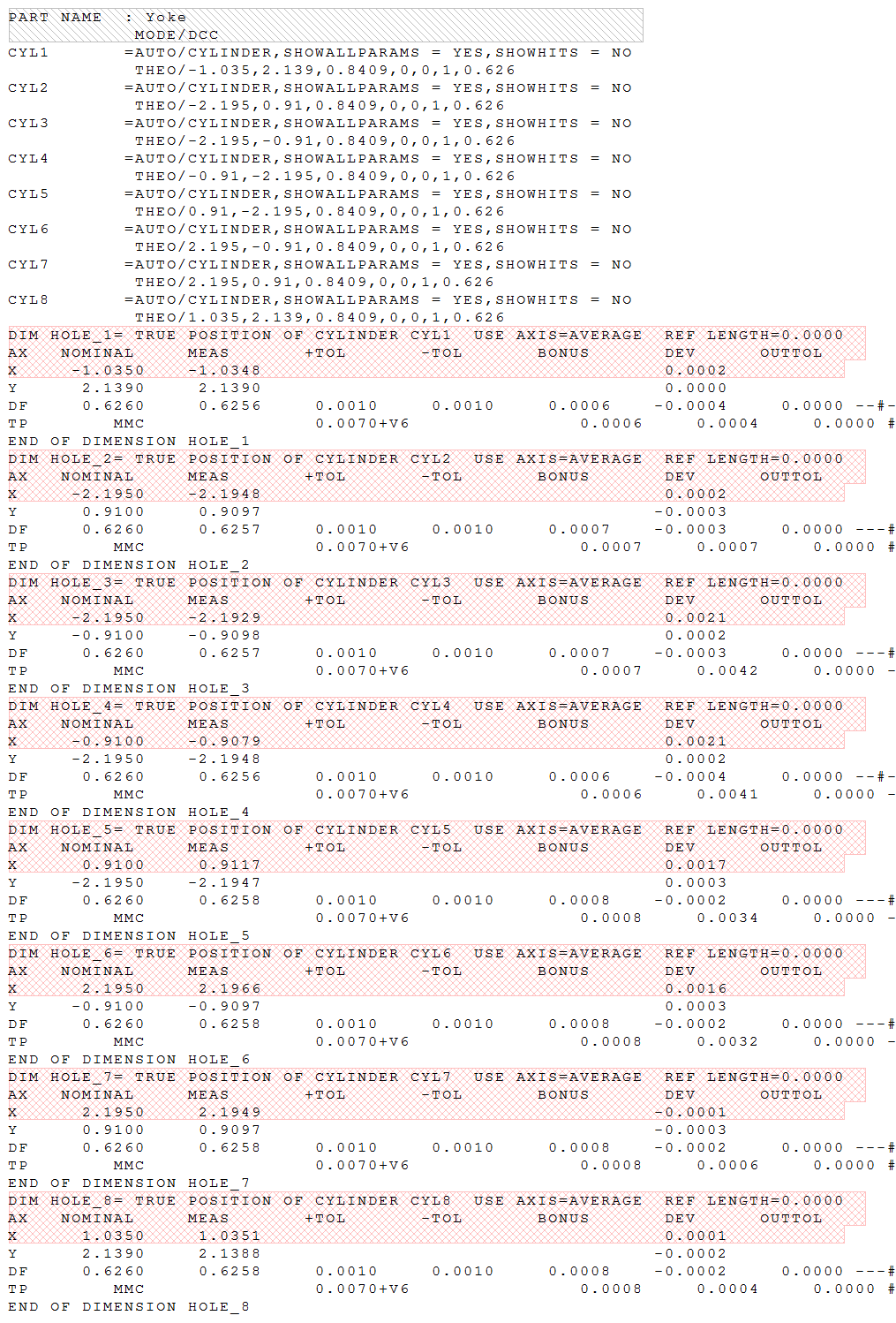

4.     The file should now look like this:

Show/Hide Screenshot
