1. Locate the Feature labeled "X" that you created in the previous step.
2. Duplicate Feature "X".
a. Double-click "Copy A of X".
i. In the Feature Properties dialog:
(1) Change the feature label to “Y”.
(2) Change the color if desired.
(3) Click Ok.
b. Locate the Instructions node under "Y".
i. Change the string in the first instruction to "Y".
3. Duplicate Feature "Y".
a. Double-click "Copy A of Y".
i. In the Feature Properties dialog:
(1) Change the feature label to “TP”.
(2) Change the color if desired.
(3) Click Ok.
b. Locate the Instructions node under "TP".
i. Change the string in the first instruction to "TP".
4. Duplicate Feature "TP".
a. Double-click "Copy A of TP".
i. In the Feature Properties dialog:
(1) Change the feature label to “DF”.
(2) Change the color if desired.
(3) Click Ok.
b. Locate the Instructions node under "DF".
i. Change the string in the first instruction to "DF".
5. Duplicate Feature "DF".
a. Double-click "Copy A of DF".
i. In the Feature Properties dialog:
(1) Change the feature label to “AUTO/CYLINDER”.
(2) Change the color if desired.
(3) Uncheck the check box "Is MasterTie".
(4) Click Ok.

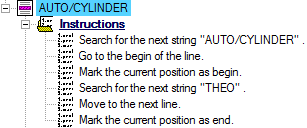

b. Locate the Instructions node under "AUTO/CYLINDER".
i. Define the instructions as:

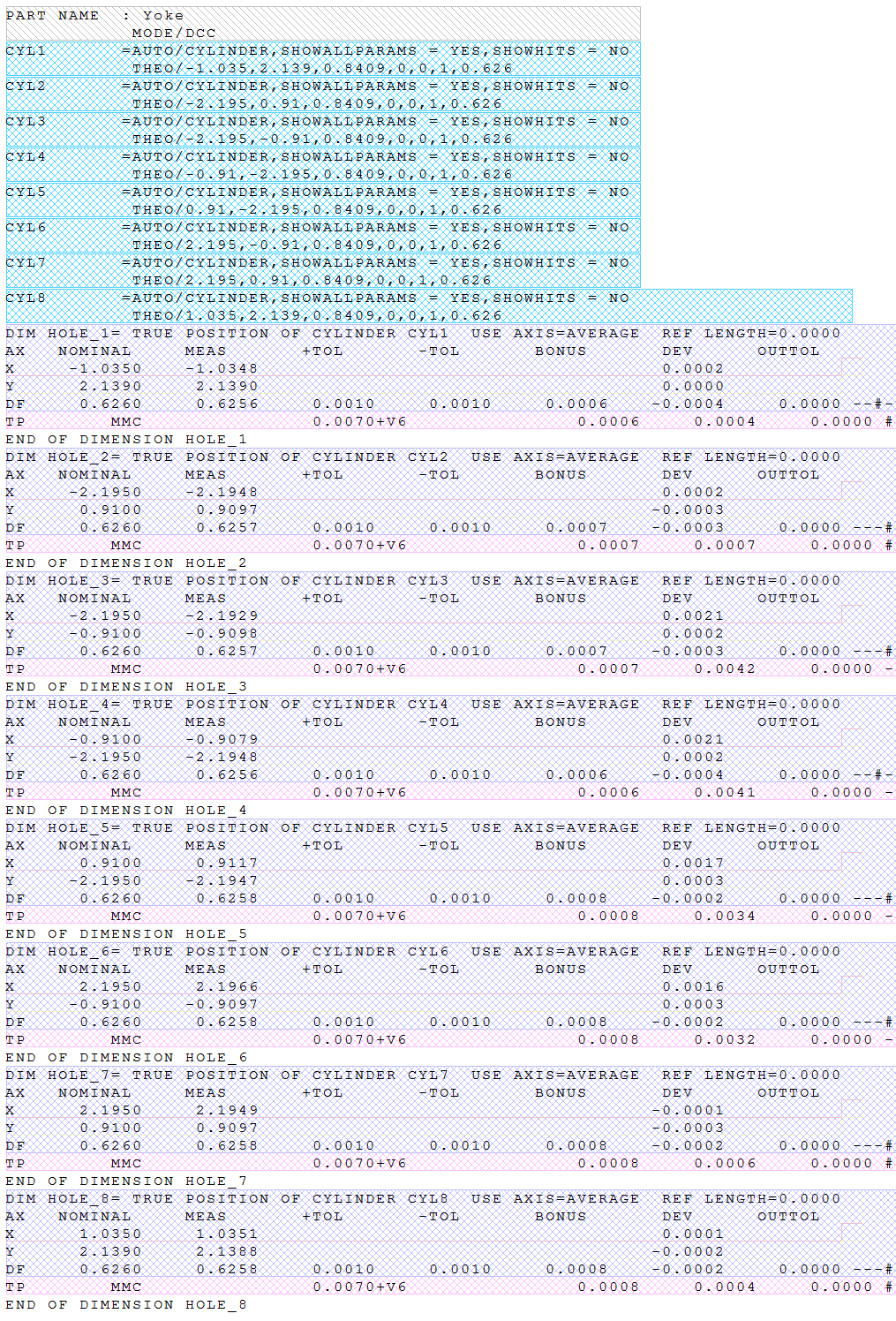

6. The file should now look like this:
