Application Logs

In this topic: Hide



Messages about CM4D are saved to a file in the Logs folder. The Logs folder contains all the log files created by the ATS CM4D applications. The Log Folder is a sub-folder of the installed CM4D folder by default, but the log files can be saved to any writable folder (set in the Cm4d.ini file file).

Logs Folder CM4D.ini Settings

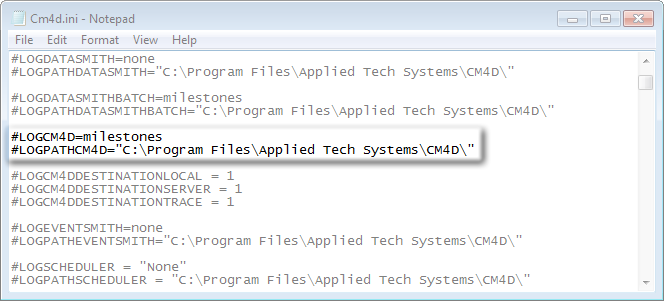

Each application and service has two parameters in the Cm4d.ini file: one for the logging option and one for the path of the log file.

Notice
If changes are made to the Cm4d.ini file, all applications (and running CM4D Services) must be restarted before the changes will take effect.

Logging Options

The logging option set in the Cm4d.ini file determines what information is written to the log file. Only one option may be used at one time.

Option

Description

none

Disables all logging filters

all

Enables all logging (errors, milestones, detail, and developer)

errors

Logs error messages. This is the most common setting for general troubleshooting.

milestones

Logs key messages, such as when data has been saved to the database

detail

Obsolete logging option

developer

Used for debugging purposes ONLY!

This parameter is NOT recommended for use in a production environment, as the log files will become quite large.

This option should only be used under the direction of ATS Technical Support.

Log Files

Within the Logs folder, the name of the log file indicates which application created the file. When the current log file reaches a size of 10MB, a new log file will be created with the number following the underscore increased by one number (up to 99 before restarting at 00). If a file is more than 10 days old, it will be removed from the log folder. Once a file is removed, it is permanently deleted (not sent to the Recycle bin).

CM4D (Classic, Interactive, Workcell)

·        CM4D_XX.log - Created at the time of CM4D startup. Only one file will be created per machine, and may be used by CM4D or any other application within the CM4D suite that utilizes an instance of CM4D (such as DataSmith Batch or Scheduler). If CM4D experiences any problems during run time, these message will appear in the log file.

DataSmith

·        DataSmith_XX.log - Created at the time of DataSmith startup and contains all logging, connection, and output information relating to DataSmith.

DataSmith Batch Manager and Service

·        DataSmithBatch_XX.log – This is the log file created by the DataSmith Batch Service portion of the mechanism.

·        DataSmithBatchManagerXX.log – This is the log file created by DataSmithBatchManager.exe, which is the DataSmith Batch Manager user interface application.

Results Services

·        CM4D_00.log - Created at the time of the CM4D client startup as part of the CM4D Results Launcher service.

·        CM4DResultsLauncher_00.log – Created by the CM4D Results Launcher.

·        CM4DResultsService_00.log – Created by the CM4D Results Service.

·        CM4DResultsExportClient00002_00.log – This is the log file created by CM4D.exe clients used by the CM4D Results Launcher service. Each CM4D client log is assigned a five-digit client number followed by an underscore and the number of the corresponding service.

Scheduler Manager and Services

·        CM4D_XX.log - This log file is only created at the time of CM4D startup. This log is the counterpart of the log file CM4DSchedulerManager_XX.log, so the _XX will be the same number.

·        CM4DLauncher_XX.log – This is the log file created by the CM4D Launcher Service portion of the mechanism.

·        CM4DScheduler_XX.log – This is the log file created by the CM4D Scheduler Service portion of the mechanism.

·        CM4DSchedulerClientXXXXX_XX.log – This is the log file created by CM4D.exe, which acts as a CM4D “Client” of the Scheduler Service for creating reports.

·        CM4DSchedulerManagerXX.log – This is the log file created by SchedulerManager.exe, which is the CM4D Scheduler Manager user interface application.
