Job Queue

Topic ContentsTopic Contents
  1. Job Name
  2. Job Priority
  3. Managed Report
  4. Queue Status
  5. Queue Time
  6. Sample Create Date
  7. Sample Label
  8. User
  9. Number of Jobs in Queue
  10. Number of Jobs Selected
  11. Use Auto Refresh
  12. Make Hot
  13. Delete
  14. Refresh
  15. Exit

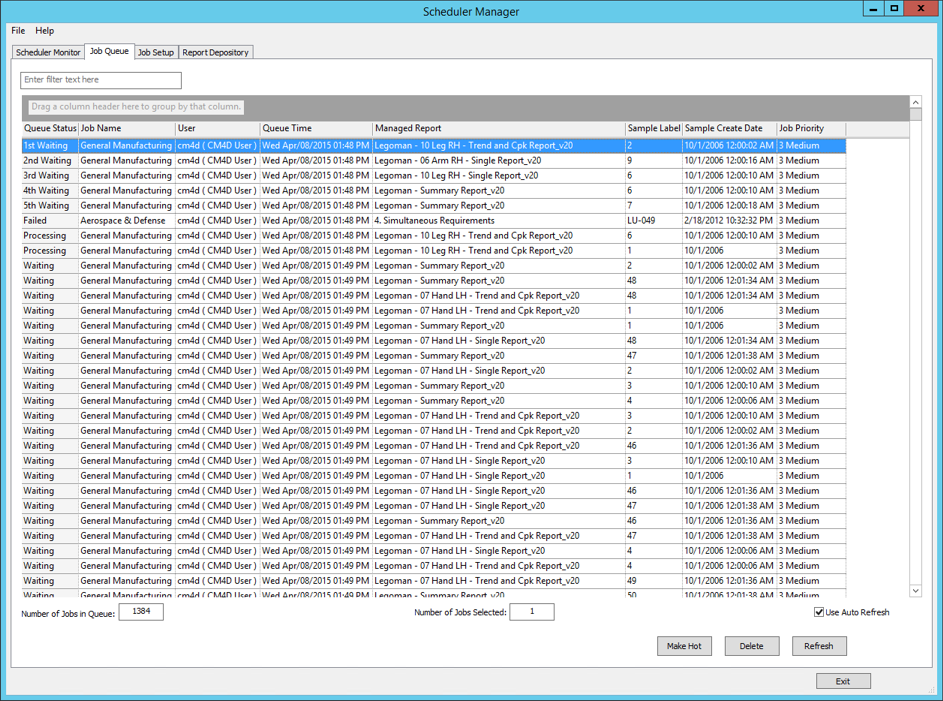

The Job Queue tab contains the status of all pending jobs and allows you to view the status of any current jobs or remove any waiting or failed jobs.

This information may also be retrieved directly from the database. See the topic Metrics and Monitoring for more details.

Scheduler QueueNumber of Jobs in Queue Number of Jobs Selected Use Auto Refresh Make Hot Delete Refresh Exit Scheduler Monitor Job Setup Depository Queue Status Job Name User Queue Time Managed Report Sample Label Sample Create Date Filter or Sort Job Priority

  1. Enter filter text here - Enter a string to filter down the entire grid to only rows containing text matching the string entered. This filtering is dynamic and will update the grid as you type.
  2. Drag a column header here to group by that column - See the topic Grid Controls for information on how to use the grouping and sorting options available in the Grid area.
  3. Columns - The available columns can be used to sort and group the results of a search.
    1. Field Chooser - To access any additional or removed columns, right click in the column header area and select Field Chooser. Drag the column names into position in the column header area and close the Field Chooser dialog.

Job Name

Displays the Job Name assigned when the job was created in the Job Properties tab.

Job Priority

When more than one job is waiting to be processed at the same time, the job with the highest priority will be processed first. If all the Priority settings are the same (default is Medium), then jobs will be processed in the order they are entered into the Queue.

Managed Report

The Managed Report(s) used by the job to generate a report.

Queue Status

The Status of the Job currently in the Job Queue. The status may be any of the following:

Waiting - Job is currently waiting to be processed.

1st-5th Waiting -  Indicates which waiting job will be next in line to be processed.

Processing - Job is currently being processed.

Failed - Job failed to process. See the log file for more information on why the job failed.

Disabled - Job was already in the queue waiting to be processed when the Job was Suspended. To re-enable the Disabled jobs in the queue, set the job back to Active.

Queue Time

The date and time stamp of when the job was placed into the Job Queue for processing.

Sample Create Date

The Create Date of the sample that triggered the job.

Sample Label

The Label of the sample that triggered the job.

User

Displays the user that is running the job. If you do not have the Scheduler Manager privilege, but only the Scheduler User privilege, the User cell will be read-only with your user name, and you will only be able to view jobs being run by you.

Number of Jobs in Queue

The Number of Jobs in Queue indicates how many jobs are currently in the Job Queue.

Number of Jobs Selected

The Number of Jobs Selected field is a read-only field indicating how many (if any) jobs are highlighted. When deleting any jobs from the Job Queue, check the number of jobs selected to ensure that you are only deleting the jobs you want to delete.

Use Auto Refresh

When Use Auto Refresh is selected, the Job Queue automatically checks for any new jobs every 30 seconds.

Make Hot

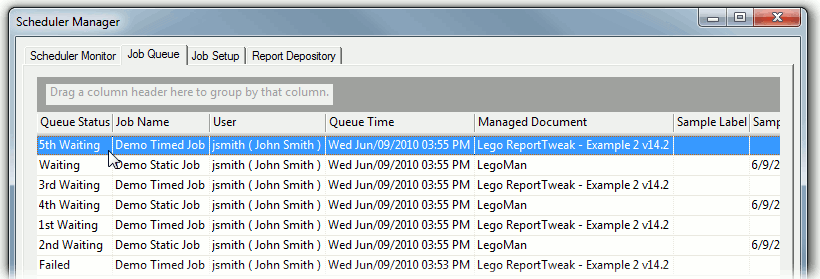

The Make Hot button allows you to for a job to the top of the Job Queue. To push a job to the front of the line, select the job row in the Job Queue grid and then click the Make Hot button on the bottom of the interface.

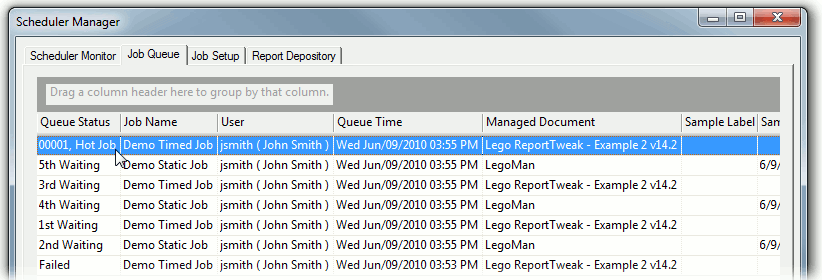

Selecting Make Hot changed a job with a Status of 5th Waiting to 00001, Hot Job.







Delete

To delete jobs that are waiting in the Job Queue by selecting one or more rows, then clicking the Delete button. If you are not using Auto Refresh, clicking Refresh will manually reload the contents of the Job Queue.

Refresh

The Refresh button causes the Job Queue to check for any new jobs.

Exit

The Exit button will close the Scheduler Manager without saving any changes.
