Annotation Sets are predefined styles for the chart annotations that are accessed by right-clicking on a feature marker on the 3D model. Each set has styles designed for each Feature type, so depending on the marker selected you may see a different style of chart annotation. The sets are designed to provide optimal displays of information for the Feature selected.
To choose which set is used when Annotation are opened, select an option from the Annotation Set menu at the top of the 3D Viewer page.
 |
 |
|
Example Set 1 - Shows the same chart style for Surface, Hole and XYZ feature types. |

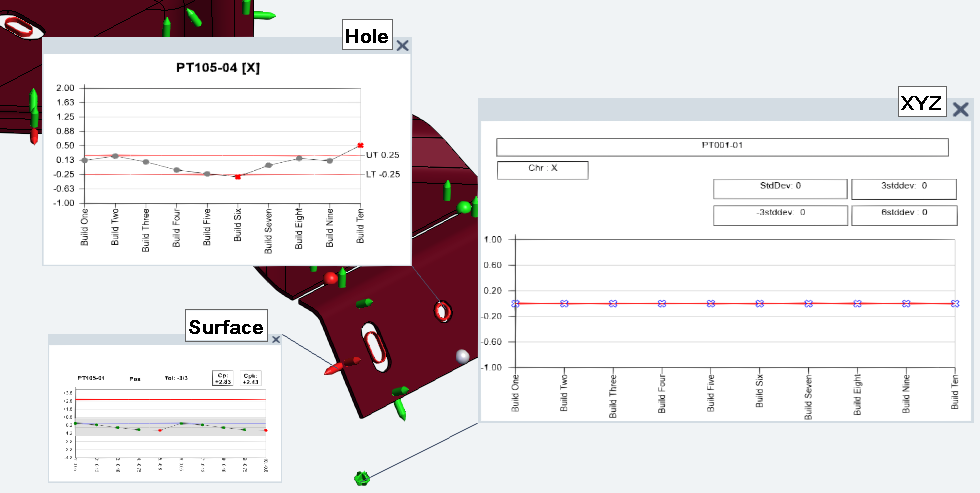

Example Set 2 - Shows different chart styles depending on the feature type; charts for Surface, Hole and XYZ features each have a different appearance. |
Annotation Sets are configured by a CM4D Administrator in ATS Configuration Manager. Refer to the CM4D Config help via the ATS Configuration Manager application or visit ATS-HELP.com for online access.
