Sieves

Sieves are predefined filters for selecting the feature types and characteristics to be displayed in the 3D view, grids and reports. Sieve definitions include feature type, characteristics per feature type and characteristic deviation type (absolute or actual values, vector deviation or car deviation). If no sieve is selected, all available processes are loaded.

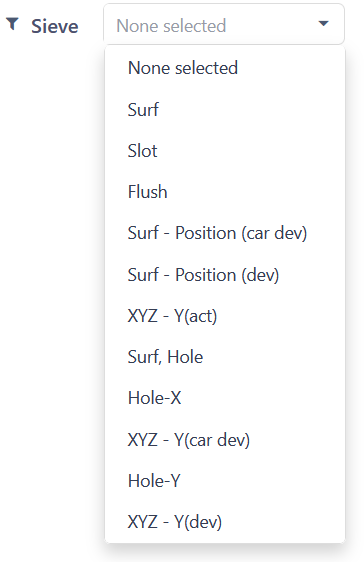

To choose a sieve to apply to the loaded data, select an option from the  Sieve menu at th e top of the 3D Viewer page.

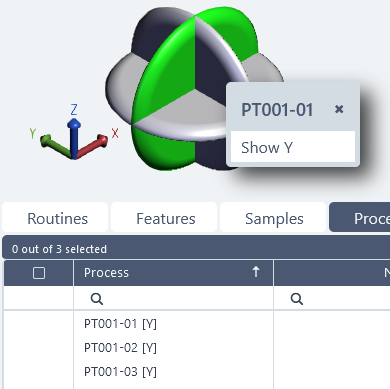

Sieves are pre-configured to determine: which feature types are shown which characteristics are shown for each feature type how characteristic data is shown - absolute values, deviation or car deviation Once a sieve is selected, the information in the grids and the features displayed on the 3Dmodel is updated. The context menu for annotations on the feature markers only show the characteristics that are available for the applied sieve.

See also, About CM4D Data.

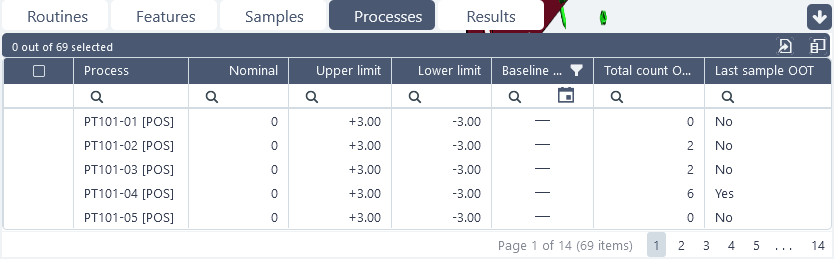

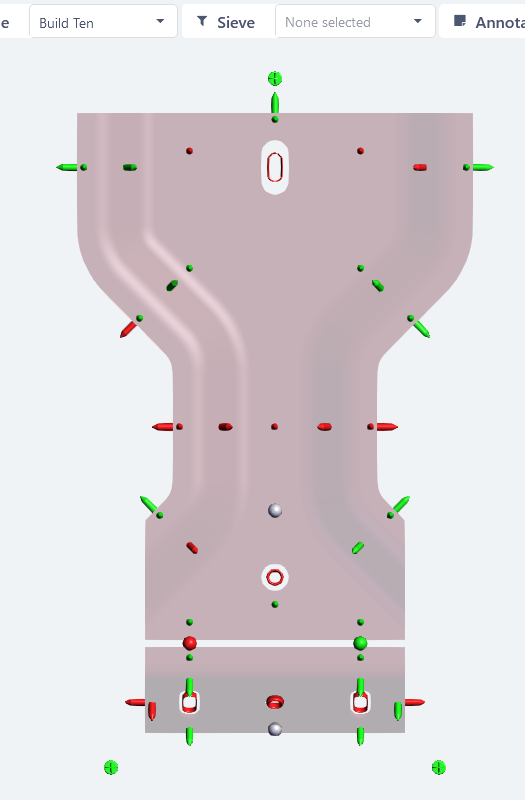

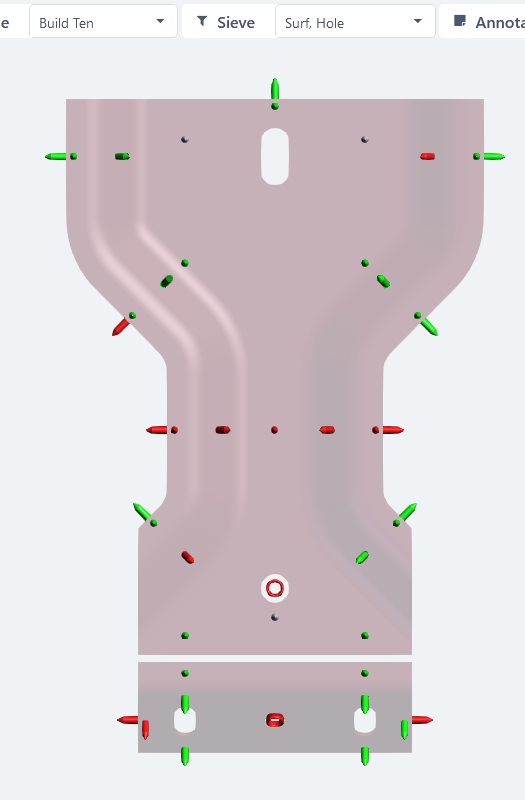

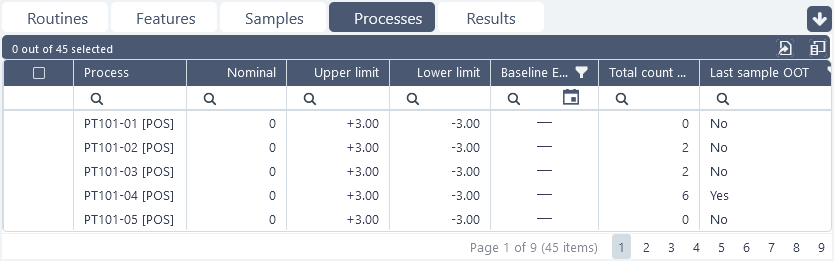

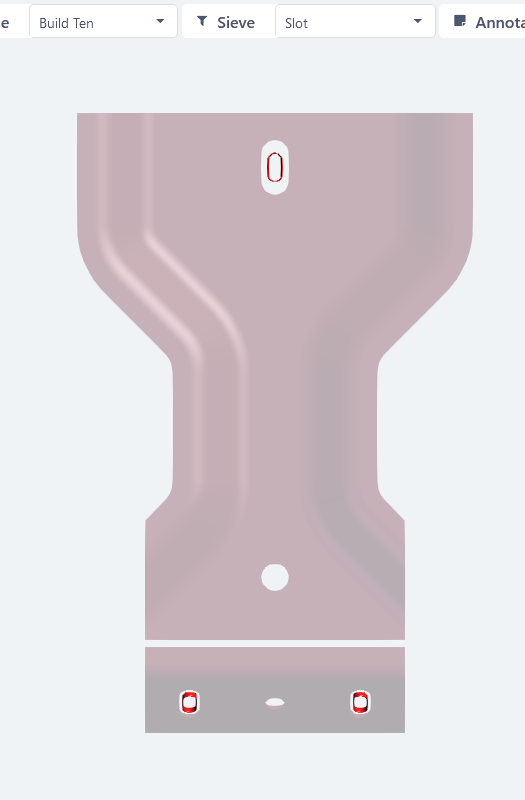

No Sieve - 69 Processes	Show Surface and Hole Features - 45 Processes	Show only Slot Features - 5 Processes

Sieves are configured by a CM4D Administrator in ATS Configuration Manager. Refer to the CM4D Config help via the ATS Configuration Manager application or visit ATS-HELP.com for online access.
