Plate Step 29: Define Feature Characteristic - Label

Home Next

1.     Locate the Features node in the "My Plate Nominals" config.

2.     Right-click the “Feature Label” characteristic for the "Point" feature.

3.     Select Copy Characteristic from the context menu.

4.     Locate the Features node in the "My Plate Constructed" config.

5.     Right-click "Characteristic A" under the "Range" feature node.

6.     Select Paste Characteristic.

7.     Double-click "Feature Label".

a.     In the Characteristic Properties dialog, change the name of the characteristic to "Label".

b.     Click OK.

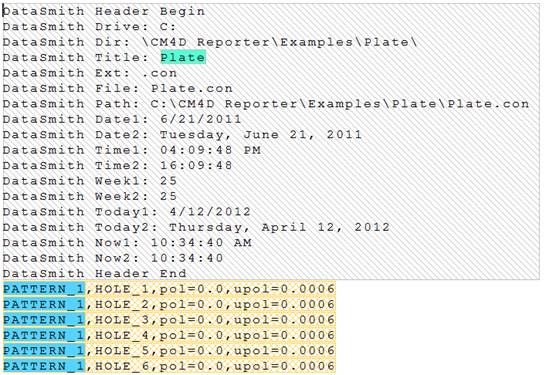

8.     The file should now look like this:

Show/Hide Screenshot
