Multiple Sift Rules are sets of single Sift Rules that are run in the order listed to organize your data by more than one Sift Rule at a time. Multiple Sift Rules serve two purposes:
1. Points can be organized according to feature type.
2. Each Sift Rule will cause a page break, so that sheets are grouped by Sift Rule.
Default Multiple Sift Rule options:
· Single Sift Rule - the default Sift Rule, as set in the Sift Rules () dialog.
· Handedness - a Multiple Sift Rule that sorts the report by grouping annotation by the handedness of the data; each change in hand is started on a new sheet.

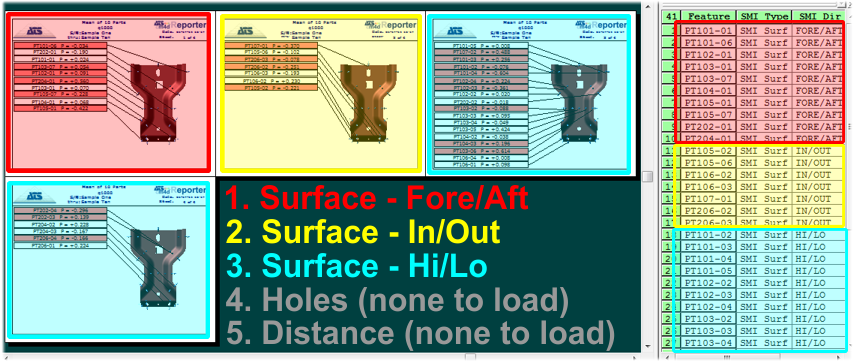

· SMI Type - a Multiple Sift Rule that sorts the data in the report by Surface (grouped by direction), Holes, and Distance features.
If your data does not meet the specifications of the selected Sift Rule, no data will appear in your report.
1. Click the Change Sift Rules (
) button to open the Change Sift Rules dialog.
2. Select the label of the rule you want to apply and click OK.
1. Click the Change Sift Rules () button to open the Change Sift Rules dialog.
2. Select the label of the rule you want to apply and click OK.
3. Click the Sift Rules () button to open the Multiple Sift Rules dialog.
4. Select the label of the rule you want to modify and click Edit.
5. In the Sift Rules dialog, proceed as if you were creating a single Sift Rule.
· Add - Opens the New Label dialog, in which you can define a label for the New Sift Rule. Once a Sift Rule has been created, select it in the window and click Edit.
· Remove - Deletes the selected Sift Rule(s) from the list.
· Edit - Opens the Sift Rule dialog, in which you can edit the properties of the Sift Rule.
· Rename - Allows you to rename the Sift Rule label.
· Copy - Duplicates the selected Sift Rule.
· Up - Moves the selected Sift Rule up the list.
· Down - Moves the selected Sift Rule down the list.
