Create Unit

The Create Unit form allows you to add a unit to the system based on information that you enter or select. This could include details such as the serial number, color or build group.

The form can include check boxes, combo boxes, list boxes that are populated with data from the database. You can then make a selection from that list.

Alternatively, or in addition, it can contain a text box where you can enter a customized value.

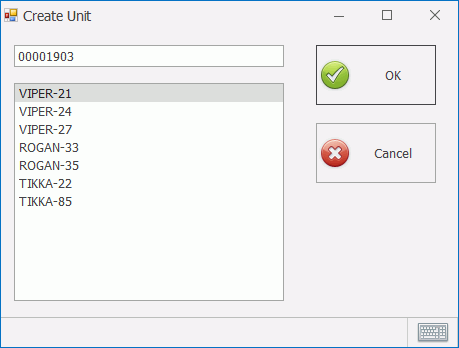

Example

How to Set Up the Form

1. Create Stored Procedure for Unit Creation

In order to insert a new unit in the database you will need to use a stored procedure. As with all customised stored procedures it must start with the prefix _custom. For example custom_create_new_unit.

The stored procedure will be different for every plant but you may be able to save time by starting with this example

CREATE PROCEDURE [dbo].[custom_create_new_unit]

@productCode nvarchar(20),

@serial nvarchar(20),

@colorID int,

@unitID int output

begin

set nocount on

declare

@plantID int,

@productID int,

@buildGroup int,

@modelyear smallint,

@prodDate date

set @unitID = -1

if (@productCode is null)

begin

return

end

if (@serial is null)

begin

return

end

-- Get current date and use this for production date

select @prodDate = getdate()

-- Get default build group

select @buildGroup = build_group_id

from build_groups

where is_default = 1

-- Get default plant

select @plantID = plant_id

from plants

where is_default = 1

-- Get current model year

select @modelyear = convert(smallint, datepart(yyyy, @prodDate))

-- Get product id

select @productID = product_id

from products

where code = @productCode

-- Try to find unit

select top 1 @unitID = unit_id

from units

where serial = @serial

and model_year = @modelyear

and product_id = @productID

order by unit_id

-- Quit if unit already exists

if (@@rowcount = 1)

return

begin transaction

-- Insert Unit

insert into units

(product_id, plant_id, model_year, serial, build_group_id, prod_date, is_locked)

values

(@productID, @plantID, @modelyear, @serial, @buildGroup, @prodDate, 0)

set @unitID = scope_identity()

-- insert into unit_lookup_codes (unit_id, lookup_type_id, lookup_code) values (@unitID, 1, 'TestCode')

-- Insert into Checklist Generation Queue

insert into chk_generation_queue

(unit_id, is_force_create)

values

(@unitID, 1)

insert into unit_colors

(unit_id, color_type_id, color_id)

values

(@unitID, 1, 1)

commit

END

2. Create the Create Unit Form

The Create Unit form sends a value to the custom_create_new_unit stored procedure which then creates a new unit in the database. It also sets the new unit as the current unit so that it can be viewed in the Main screen.

3. Add Generic Controls to Form

In order to know what type of unit needs to be created at least one value must be entered or selected in the form. These values are entered, manually or automatically, using Generic controls.

If you want the operator to select from a list populated from existing database values you must use the Checkbox, Combobox or Listbox control. If you want the operator to enter a value manually you must use the TextEdit control.

The output of these controls will be passed to the Create Unit form which will use them to create a unit using the stored procedure.

4. Link Form to Stored Procedure

You now have everything you need to enable the stored procedure to create a new unit in the database.

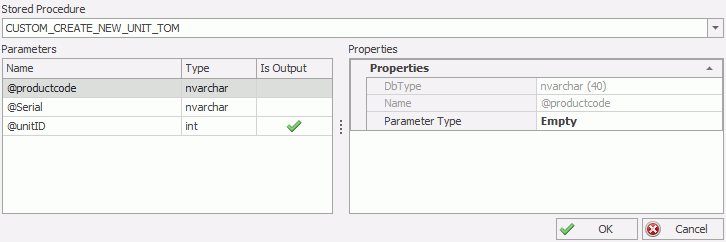

2. In the Properties pane click the edit button (

) next to OnAcceptStoredProcedure.

The Parameters pane lists the parameters that are required by and returned by the stored procedure. If Is Output is enabled for a parameter then that parameter will be returned to the Main form. In this instance this will usually be the Unit ID. This means that the newly created unit will be displayed to the operator.

4. Select the first parameter that has Is Output disabled. The Properties tab updates.

o Value: A static value that will always be used by the stored procedure. This requires a number type and the value that will be used.

o Component: Uses the output (Value Member) from one of the controls in the form. This is selected from the Component drop-down list which gives the names of the available controls.

o Variable: Contains global variables from the database. This includes any variable relating to the unit, the station or the user. This requires the Variable Path to be specified.

8. Select each of the input parameters and ensure that the Type property (e.g. System.Int32) is correctly set.

Using the Form

The Create Unit form is accessed from the Main screen by clicking on the Commit button on the Go to unit control.

Available Controls

Form Specific

Other Available Controls

Control	Used to perform this action
Audit - Info Panel	Displays multiple audit properties in a grid. Select Choose properties in the smart tag to modify.
Audit Info	Displays the value of an audit property. Select Choose column in the smart tag to modify.
Change Password Control	User can change password by entering the current password and then entering the new password.
Checklist Control	Displays checklist questions for the current step together with possible answers, comments and reference documents.
Current Unit Defects Grid	Lists the defects associated to the unit that is being viewed.
Custom Defects Grid	Lists part/concern/repair shortcuts specified by user.
Date Label	Displays the current date
Defect-Info Grid	Contains additional information to that displayed in the Overview window, including recording area/cell, repair area/cell, responsible area/cell and any associated images.
Defect Control	Displays the views, view categories and part categories into which defects can be placed.
Generic Checkbox	Enable or disable option.
Generic Combobox	Select one or more options.
Generic Date Picker	Select a date.
Generic Grid	A customized table of information.
Generic ListBox	Select from a customized list.
Generic TextEdit	Custom data entry box.
Goto Generic Form Button	Click to go to a specified Generic form.
Goto Unit Button	Select identity type, enter identity number and click to go to selected unit.
Group Control	Allows components to be grouped together in the form. When the group control is moved all the components it contains will also be moved.
Last Defects Grid	Lists the most recently entered defects.
Overview Control	Contains the defects related to the current unit and allows you to perform several actions on the defects and repairs.
Picture	Displays an image. Can be used to add a logo to the form.
Print Ticket Button	Click to print a travel ticket.
Product Document Control	Lists documents associated to the currently selected product.
Question Document Control	Lists documents associated to the currently selected question.
Repair - Info Grid	Displays repair information.
Report Viewer	Displays a customizable Microsoft SSRS report. The report can auto-refresh after Data Collect has been launched by modifying the auto-refresh interval when the report is designed. The report shown is selected by entering the following parameters either in the Smart Tag or in the properties pane of the control : ● Report Server: Address of report server ● Report Path: This will be in the following format <folder>/<database name>/<report collection>/<report name> ● User: User with access to the report server. ● Password: Password for the user. Example: ● Report Server: http://ATSReports333/SSRS2012 ● Report Path: /InspectReports/TJ_Database_055/Defect/Concern Ranking (119) ● User: InspectUser ● Password: ATSInspect
Select Printer Button	Open the Select Printer form.
Shell Button	Runs a command line script to carry out actions outside Data Collect (e.g. open files, run applications).
Shift Info	Displays the current shift.
Static Label	Displays customizable text. can be used to add extra information to the form.
Station - Info Grid	Lists available stations that can be selected.
Station Info	Displays the station that is being used.
Tab Control	Customizable tab control. Allows more than one set of information to be displayed in the same area of the form. They can be switched between by selecting the required tab.
Time Label	Displays the current time.
Top Concerns Grid	Lists the most common concerns at the station.
Top Defects Grid	Lists the most common defects at the station.
Unit - Info Grid	Displays information about the current unit.
Unit Color Grid	Lists the colors associated to the current unit.
Unit Info	Displays the ID of the current unit.
Unit List Grid	Displays a list of the units in the production line. The current unit is shown in the middle and highlighted. The units that have already passed through are below, and those yet to come are above. If a unit has passed through more than once only the latest pass will be shown.
Unit Lookup Code Grid	Lists the lookup codes associated to the current unit.
Use Defect Source Check Button	Specify whether the defects shown on travel tickets were entered at this station or at all stations.
User - Info Grid	Displays information about the current user.
User Info	Displays the name of the current user.
User Picture	Displays a picture of the current user.
Web Browser	Displays a web browser window. Useful for displaying online help.

Control	Used to perform this action
Generic Checkbox	Enable or disable option.
Generic Combobox	Choose option from a drop-down list.
Generic Listbox	Choose from list of options.
Generic TextEdit	Manually enter value. Can also be populated automatically.e.g. using a barcode scanner.
OK Button	Use selected root cause.
Cancel Button	Cancel root cause selection.
