Questions are assigned by associating the checklist category that contains them to a step within a setup within a station. The questions assigned will be available to all products listed within the step. However, a question will only be shown to an operator if it has been specifically enabled for the current product.
A question can be assigned to more than one station and inspection step.
1. Select the Attribute tab.
2. Click Setups.
A list of the existing inspection setups is displayed.
3. In the left-hand pane expand the setup containing the step to which you wish to add the checklist category.
4. Select the Checklist Categories tab in the right-hand pane.
A list of all the available checklist categories is displayed.
5. Drag and drop a checklist category from the list onto a step in the left-hand pane.
The category is added to the step.
The order in which the questions will be presented to the operator is decided when they are added to Categories (see here)
It is not possible to assign individual parts to a station. Individual parts are placed into a part category and it is this part category that is assigned to a station.
Views, view categories and part categories are defined as follows:
● View – an image containing components.
● View Category – contains one or more views.
● Part Category – contains one or more parts for text button inspection.

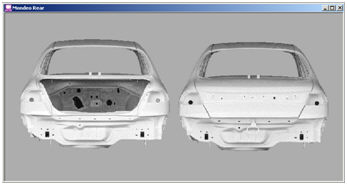

An individual view can contain multiple product views. For example, the following view is a single defined view within Inspect. However, the image itself shows two different versions of the part being inspected.
1. Select the Attribute tab.
2. Click Setups.
A list of the existing inspection setups is displayed.
3. In the left-hand pane expand the setup containing the step to which you wish to add the checklist category.
4. Select the Views, View Categories or Part Categories tabs to display items that can be associated with the stations.
5. Select a Product from the drop-down list above the right-hand pane.
6. Drag and drop the required items onto the step in the left-hand pane.
The items are assigned to the selected product when they're added to the step.
7. Once all items are added drag and drop them into the correct order. This is the order in which they will be shown to the operator.
To copy items simply drag and drop them from one part of the tree to the other. If you simply wish to move the items you'll need to delete the source items when you're done.
1. Select the Attribute tab.
2. Click Setups.
A list of the existing inspection setups is displayed.
3. In the left-hand pane expand the setup containing the item you wish to remove.
4. Drill down to the required item and select it.
5. Click the Delete
button (
).
The item is removed from the setup.
Once a system has been configured it can be difficult to know what will be presented at a specific station for a specific unit. This functionality allows you to:
There is test functionality in Cockpit that will let you see which setups, checklist categories, views, view categories and part categories will be presented.
For more information see here.
