This report displays detailed information concerning a single unit.
The user can enter a unique serial number, line sequence number, or other identifying means to select the unit.
| Parameter | Description |
Language |
The language the report results will be shown in. |
Identity Type |
Search by serial number or ID number. |
Identifier |
Value for selected identity type. |

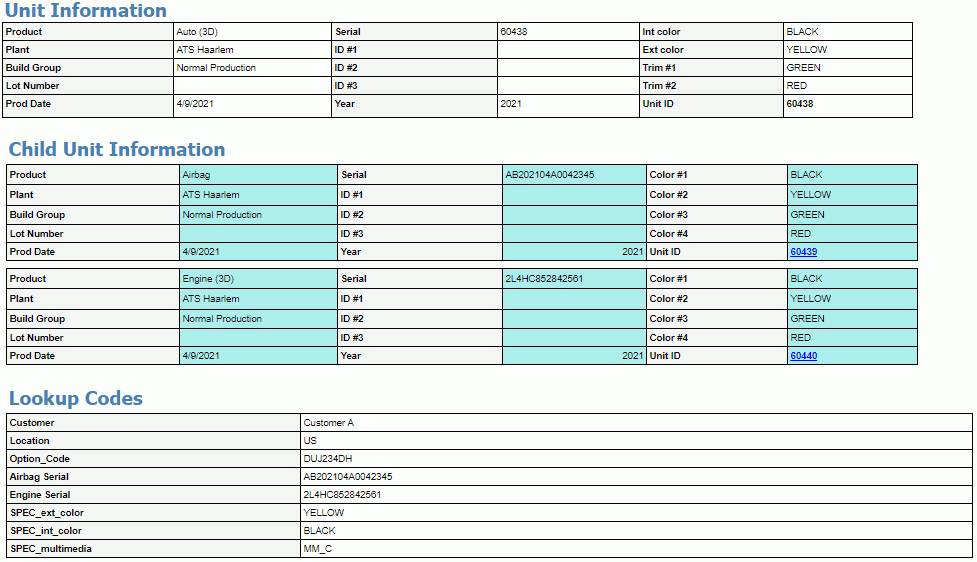

Show Extended Info |
Display custom information associated to the unit. |

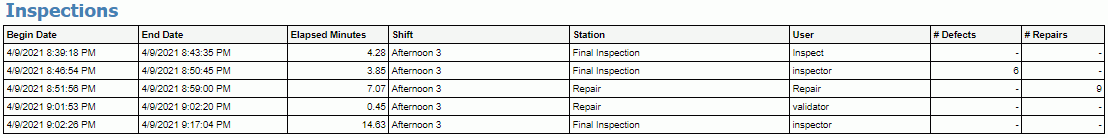

Show Inspections |
List the inspections carried out on the unit. |

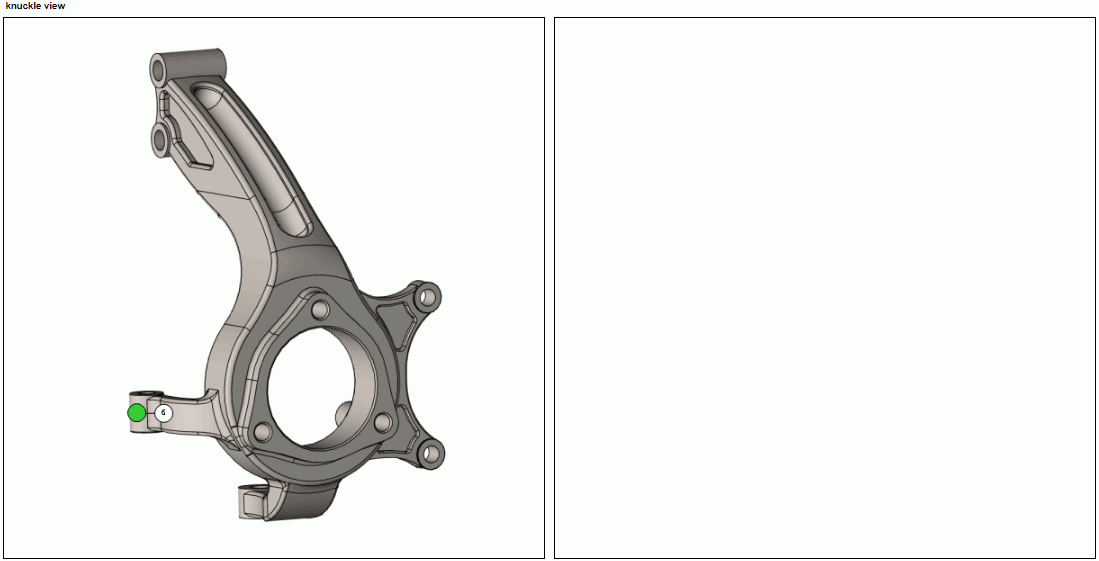

Show Views with Defects |
Display all views that have defects assigned to them. |

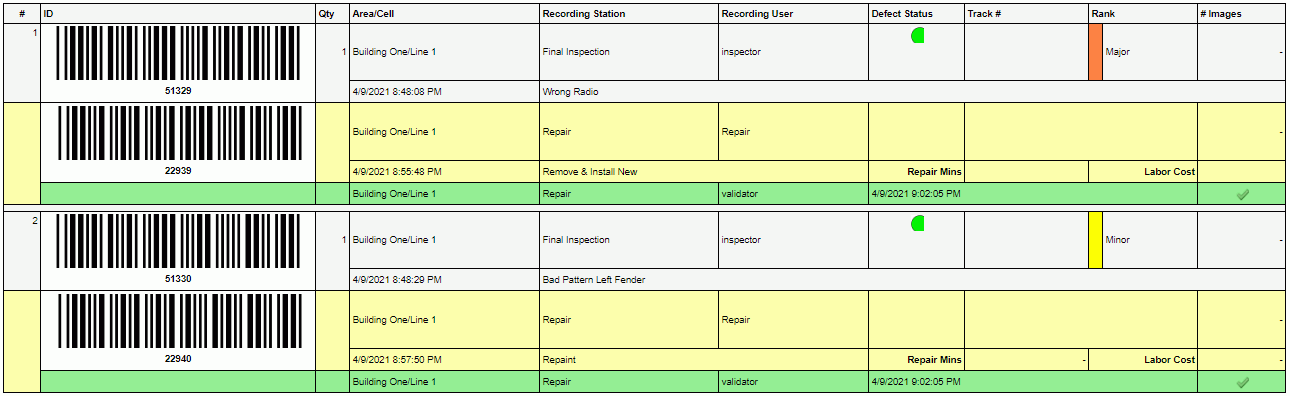

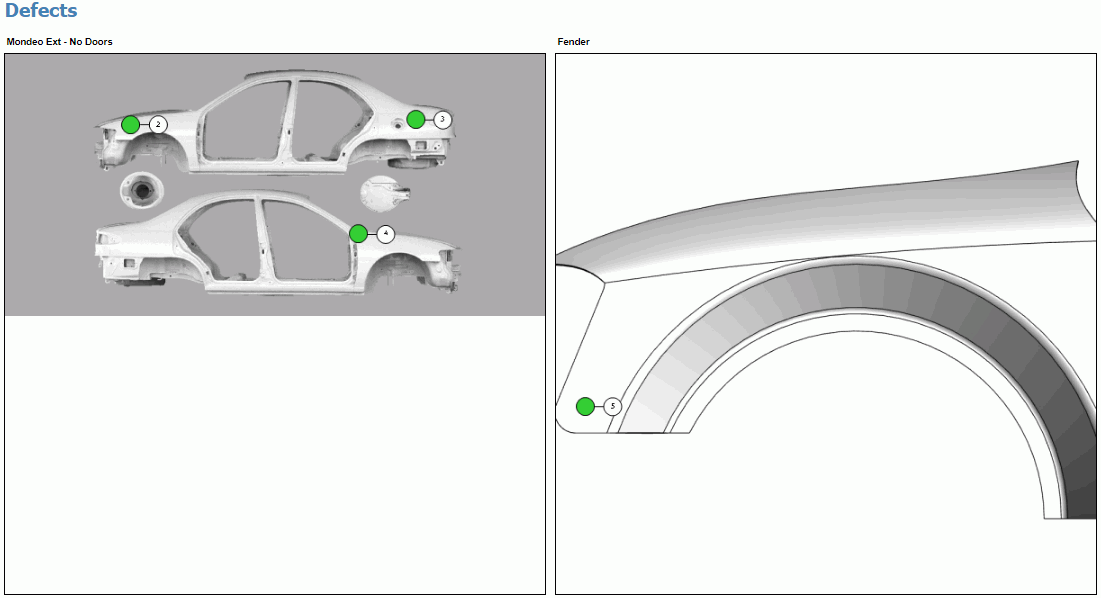

Show Defects |
Display defects on the views. |

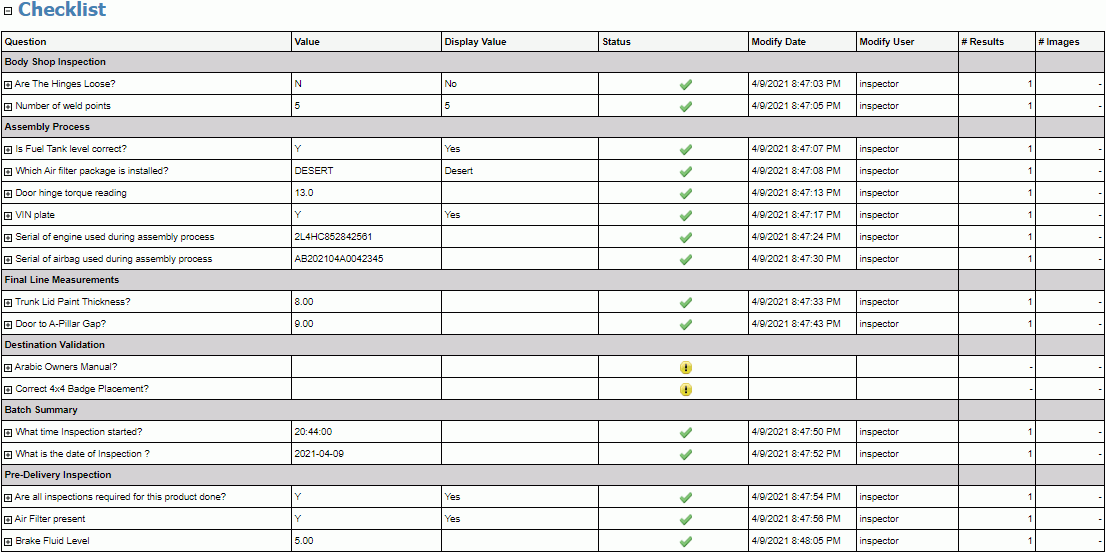

Show Checklist |
Show answers given to checklist questions. |
Show Tracking |
Show when the unit passed each tracking point. |
# View Columns |
How many columns of views should be shown. |
Image Width |
Width of image in pixels. |
Image Height |
Height of image in pixels. |
Show Defect Ordinal on View |
Show the order in which the defects were added. |
