In the Document Properties- Scores tab clicking Build Examples creates some examples of commonly used Scores and their supporting styles. These examples may be edited or deleted the same as Scores you create manually, and can be recreated at any time by clicking Build Examples again.
Build Examples - Scores
Build Examples provides the following scores and supporting styles:
Build Examples - Styles
Each Score example built uses styles that are created automatically when the Scores are generated.
If you do not see the Styles after you click Build Examples, close the Document Properties and reopen the dialog.
Scores are made of a number of bins, each of which are given a preset styles. Scores use styles to assign colors, fonts, etc. to different score value ranges. Go to the next section to see examples of the default styles.

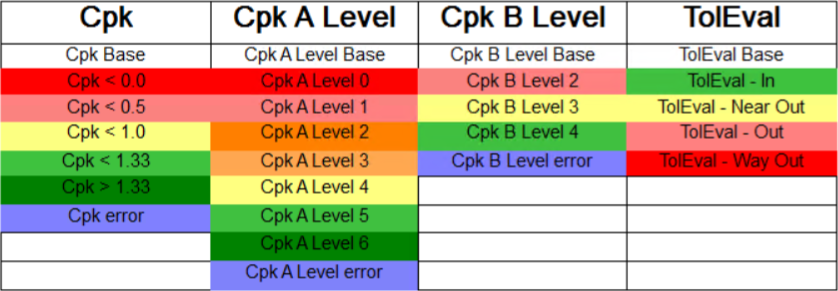

Example Score/Style Defaults
The following are the default settings of the Build Examples for Scores and Styles:
Example Score/Bin Values
The following table contains the details on the example Scores built, including the assigned styles.
| Score | Score Bin(s) | Bin Boundary | Bin Style |
| Cpk | <start bin> | Cpk > 1.33 | |
| < 0.0 | 0.0 | Cpk < 0.0 | |
| < 0.5 | 0.5 | Cpk < 0.5 | |
| < 1.0 | 1.0 | Cpk < 1.0 | |
| < 1.33 | 1.33 | Cpk < 1.33 | |
| error | Cpk error | ||
| Cpk A Level | <start bin> | Cpk A Level 6 | |
| 0 | 0.33 | Cpk A Level 0 | |
| 1 | 0.67 | Cpk A Level 1 | |
| 2 | 1.00 | Cpk A Level 2 | |
| 3 | 1.33 | Cpk A Level 3 | |
| 4 | 1.67 | Cpk A Level 4 | |
| 5 | 2.00 | Cpk A Level 5 | |
| error | Cpk A Level error | ||
| Cpk B Level | <start bin> | Cpk B Level 4 | |
| 2 | 1.00 | Cpk B Level 2 | |
| 3 | 1.33 | Cpk B Level 3 | |
| error | Cpk B Level error | ||
| TolEval | <start bin> | TolEval - In | |
| Way Above | {~ut~*2.0} | TolEval - Way Out | |
| Above | ~ut~ | TolEval - Out | |
| Near Above | {~ut~*0.8} | TolEval - Near Out | |
| Near Below | {~lt~*0.8} | TolEval - Near Out | |
| Below | ~lt~ | TolEval - Out | |
| Way Below | {~lt~*2.0} | TolEval - Way Out |
