Defining Causes



These are the possible causes for a measurement being outside some preset limits.

Once a cause has been specified it can be associated to actions that can be used to bring the measurement back within the limits (see here).

1.     Select the Variable tab.

2.     Click Causes.

A list of the existing causes is displayed.

3.     Click the add icon ().

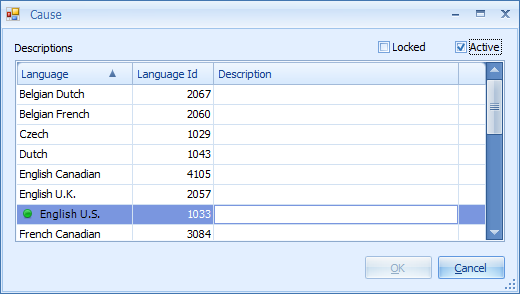

A list of languages is displayed. The default language is highlighted with a green dot.

4.     Select the Description field for the default language.

5.     Enter a description and press return.

If required, you can also add descriptions in other languages.

6.     Click OK.

The cause is added to the list.
