Select Printer



In this Topic Hide

Description

Example

Available Controls

Form Specific

Other Available Controls

Description

The Select Printer screen allows the operator to select which printer a travel ticket will be sent to. The available printers are defined in the Other Printers station option in Cockpit (see here).

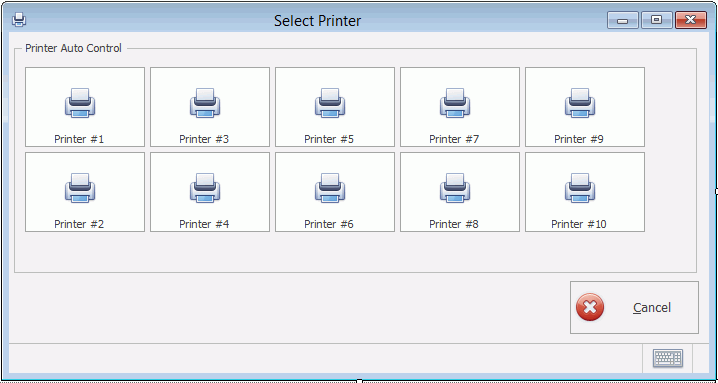

Example

Available Controls

Form Specific

Control

Used to perform this action

Select Print Group

Select the print group to use.

Cancel Button

Close the screen without selecting a print group.

Other Available Controls

Control Used to perform this action

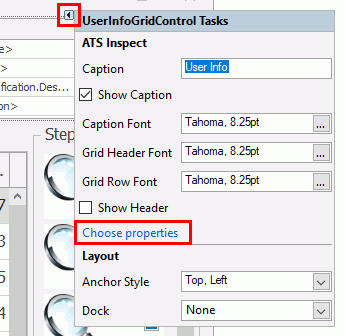

Audit - Info Panel Displays multiple audit properties in a grid. Select Choose properties in the smart tag to modify.
Audit Info Displays the value of an audit property. Select Choose column in the smart tag to modify.
Change Password Control User can change password by entering the current password and then entering the new password.
Checklist Control Displays checklist questions for the current step together with possible answers, comments and reference documents.
Current Unit Defects Grid Lists the defects associated to the unit that is being viewed.
Custom Defects Grid Lists part/concern/repair shortcuts specified by user.
Date Label Displays the current date
Defect-Info Grid Contains additional information to that displayed in the Overview window, including recording area/cell, repair area/cell, responsible area/cell and any associated images.
Defect Control Displays the views, view categories and part categories into which defects can be placed.
Generic Checkbox Enable or disable option.
Generic Combobox Select one or more options.
Generic Date Picker Select a date.
Generic Grid A customized table of information.
Generic ListBox Select from a customized list.
Generic TextEdit Custom data entry box.
Goto Generic Form Button Click to go to a specified Generic form.
Goto Unit Button Select identity type, enter identity number and click to go to selected unit.
Group Control Allows components to be grouped together in the form. When the group control is moved all the components it contains will also be moved.
Last Defects Grid Lists the most recently entered defects.
Overview Control Contains the defects related to the current unit and allows you to perform several actions on the defects and repairs.
Picture Displays an image. Can be used to add a logo to the form.
Print Ticket Button Click to print a travel ticket.
Product Document Control Lists documents associated to the currently selected product.
Question Document Control Lists documents associated to the currently selected question.
Repair - Info Grid Displays repair information.
Report Viewer Displays a customizable Microsoft SSRS report. The report can auto-refresh after Data Collect has been launched by modifying the auto-refresh interval when the report is designed.
Select Printer Button Open the Select Printer form.
Shell Button
Shift Info Displays the current shift.
Static Label Displays customizable text. can be used to add extra information to the form.
Station - Info Grid Lists available stations that can be selected.
Station Info Displays the station that is being used.
Tab Control Customizable tab control. Allows more than one set of information to be displayed in the same area of the form. They can be switched between by selecting the required tab.
Time Label Displays the current time.
Top Concerns Grid Lists the most common concerns at the station.
Top Defects Grid Lists the most common defects at the station.
Unit - Info Grid Displays information about the current unit.
Unit Color Grid Lists the colors associated to the current unit.
Unit Info Displays the ID of the current unit.
Unit List Grid Displays a list of the units in the production line. The current unit is shown in the middle and highlighted. The units that have already passed through are below, and those yet to come are above.
Unit Lookup Code Grid Lists the lookup codes associated to the current unit.
Use Defect Source Check Button Specify whether the defects shown on travel tickets were entered at this station or at all stations.
User - Info Grid Displays information about the current user.
User Info Displays the name of the current user.
User Picture Displays a picture of the current user.
Web Browser Displays a web browser window. Useful for displaying online help.
