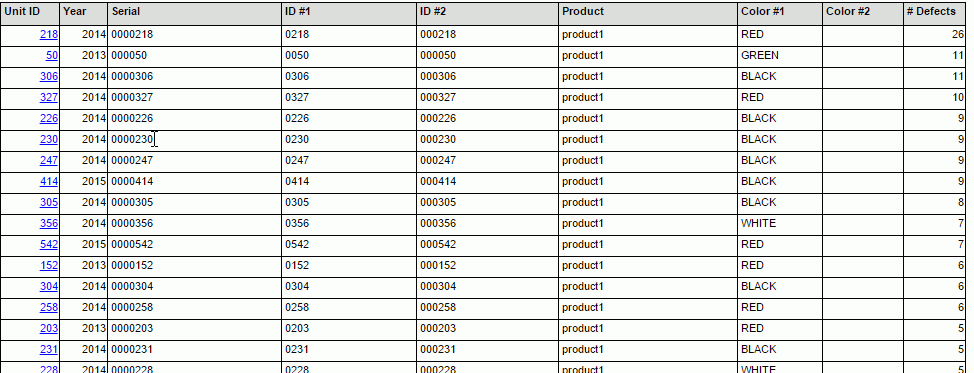

This report displays identification numbers, product type, colors and the number of defects associated to units that have at least one defect. This includes open and repaired defects. The results are ordered by the number of defects associated to each unit.
Select the Unit ID to be shown the Single Unit History (see here) for that unit.
| Parameter | Description |
Desired Language |
The language the report results will be shown in. |
Pick Date Range |
Either select a date range from the drop-down list or select a Begin Date and End Date using the two parameters below it. |
Begin Date |
The start date for the report. |
End Date |
The end date for the report. |
Defect Area/Group/Station |
The production area, station group or station where the defects were assigned. |
Responsible Area |
The area responsible for the defects occurring. |
Responsible Cell |
The cell responsible for the defects occurring. |
Product/Group |
The product(s) and product group(s) to be included in the report. |
Build Group |
The build group(s) to include in the report. |
Tracking Point/Group |
Selecting the appropriate tracking point or group will provide the sample
size for the report. That is, the number of units that crossed through
that point or group matching with the rest of the filters selected in
the report.
|
Defect Status |
The defect status to include in the report. |
Part |
The part(s) to include in the report. |
Concern |
The concern(s) to include in the report. |
Ranks |
The rank(s) to include in the report. |
Recording User |
The user that entered the defect. |
