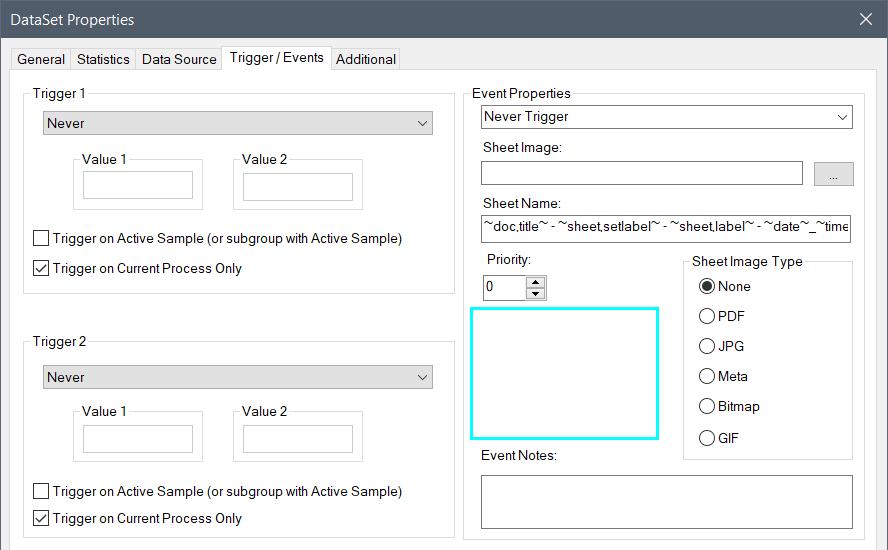

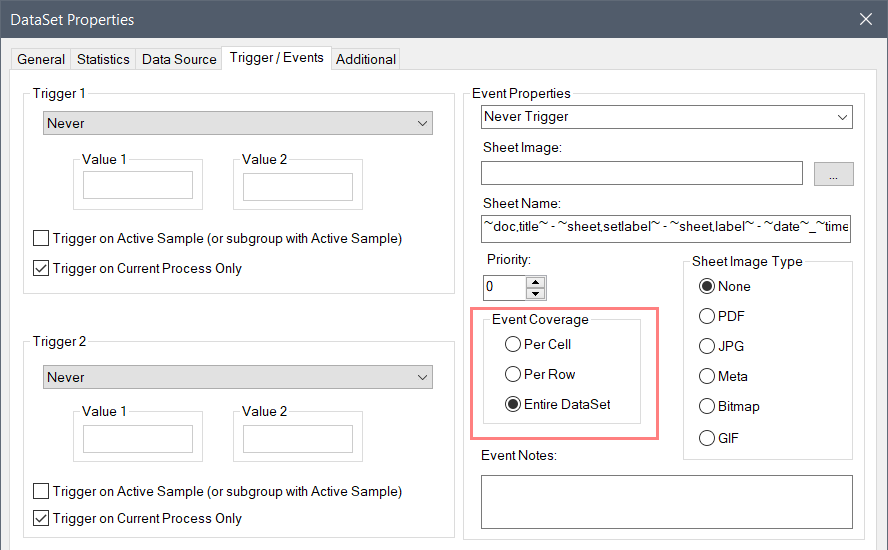

| Name | Setting | Default Value | Alternate Value | Description |
| Allow Annot Off Sheet | allow_annot_off_sheet | 0 | 1 | Allows annotation to be placed off of the sheet (on the green area). When this option is off (set to '0'), any annotation moved off of the sheet snap back to the nearest sheet margin. |
| Allow Terminator Select | allow_terminator_select | 1 | 0 | |
| Auto Orient - Zoom to Feature Minimum Distance | autoorient_zoomfeature_min_distance | 200 | Any integer | Applies to Views that use the Auto Orient 'Zoom to Features'. It can be used in cases where the view zooms to a single feature or closely grouped features so the camera position does not end up too close to the model to be able to tell where the feature is on the part. When set to a larger value, the camera will stop at the set position regardless of what would otherwise be dictated by the zoom on the feature. The value represents millimeters. Documents set to Inches automatically re-calculates accordingly during resolve. |
| Axis Label - Primary | primary_axis_label | X | Any character (A-Z) | See the topic, View Axes. |
| Axis Label - Secondary | secondary_axis_label | Y | Any character (A-Z) | See the topic, View Axes. |
| Axis Label - Tertiary | tertiary_axis_label | Z | Any character (A-Z) | See the topic, View Axes. |
| Background Image Loads | BACKGROUNDIMAGELOADS | 1 | 0 | |
| Backup Documents | BACKUPDOCUMENTS | 1 | 0 | When disabled, CM4D will not create backup files (*.4bk) for saved CM4D documents |
| CM4D Scheduler Scratch Location | CM4DSCHEDULERSCRATCHLOCATION | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Compare Precision | comparePrecision | 6 | Any integer | |
| Debug Alignment | DEBUGALIGNMENT | 0 | 1 | |
| Decimals | decimals | 2 | Any integer | |
| Default Control Limit | defaultcontrollimit | 100 | Any integer1 | |
| Default Log Path | DEFAULTLOGPATH | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | The directory where all log message files will be stored, unless specified by one of the application-specific attributes for log folder locations |
| Defrag Documents | DEFRAGDOCUMENTS | 1 | 0 | |
| Direction Label - Primary | primary_dir_label | FORE/AFT | Any Text | |
| Direction Label - Secondary | secondary_dir_label | IN/OUT | Any Text | |
| Direction Label - Tertiary | tertiary_dir_label | HI/LO | Any Text | |
| Direction Minus Label - Primary | primary_dir_minus_label | FORE | Any Text | Values in the Minus column will appear when the number is a negative integer. |
| Direction Minus Label - Secondary | secondary_dir_minus_label | IN | Any Text | Values in the Minus column will appear when the number is a negative integer. |
| Direction Minus Label - Tertiary | tertiary_dir_minus_label | LO | Any Text | Values in the Minus column will appear when the number is a negative integer. |
| Direction Plus Label - Primary | primary_dir_plus_label | AFT | Any Text | Values in the Plus column will appear when the number is a positive integer. |
| Direction Plus Label - Secondary | secondary_dir_plus_label | OUT | Any Text | Values in the Plus column will appear when the number is a positive integer. |
| Direction Plus Label - Tertiary | tertiary_dir_plus_label | HI | Any Text | Values in the Plus column will appear when the number is a positive integer. |
| Event Smith Log Retention Days | EVENTSMITHLOGRETENTIONDAYS | 0 | Any number between 0 and 365 | Represents days |
| Event Smith Server Refresh | EVENTSMITHSERVERREFRESH | 30 | Any number between 10 and 86,400 | Represents seconds |
| Ghost Border | ghost_border | 0 | 1 | |
| Graphics Driver | GPUDRIVER | Default3D | Default3D, OpenGL2, DirectX11, OpenGL2Mesa | Set the graphics driver used by CM4D. |
| Graphics Driver - Scheduler Client | GPUDRIVERSCHEDULER | OpenGL2Mesa - If the driver "Microsoft Basic Render Driver" is detected. OpenGL2 - If a different graphics driver is detected. |
Default3D, OpenGL2, DirectX11, OpenGL2Mesa | Set the graphics driver used by the CM4D Scheduler client. The defaults are adjusted automatically depending on what drivers are detected. OpenGL2 is a function of the graphic cards driver and is not available on virtual machines without a GPU. DirectX cannot be used from a service. |
| Grid Spacing | gridSpacing | 2.5 | Any integer | |
| Initial Locale | initial_locale | en-us | Any region/language code (xx-xx) | Set the default Locale Settings selection in the Document Defaults for new documents. This setting is not case-sensitive; follow the standard format "xx-xx" region/language code. |
| Load Routine Access Codes | LOADROUTINEACCESSCODES | 0 | 1 | 1= Routine Access Codes are loaded from each Database and displayed in SiteManager 0= Routine Access Codes are not loaded or displayed (default) If you do not use Routine Access codes, leave this setting disabled for a performance increase. |
| Log CM4D | LOGCM4D | none | all, errors, milestones, detail, developer | |
| Log CM4D Destination Local | LOGCM4DDESTINATIONLOCAL | 1 | 0 | |
| Log CM4D Destination Server | LOGCM4DDESTINATIONSERVER | 1 | 0 | |
| Log CM4D Destination Trace | LOGCM4DDESTINATIONTRACE | 1 | 0 | |
| Log DataSmith | LOGDATASMITH | none | all, errors, milestones, detail, developer | |
| Log DataSmith Batch | LOGDATASMITHBATCH | none | all, errors, milestones, detail, developer | |
| Log EventSmith | LOGEVENTSMITH | none | all, errors, milestones, detail, developer | |
| Log Launcher | LOGLAUNCHER | none | all, errors, milestones, detail, developer | |
| Log Launcher Destination Local | LOGLAUNCHERDESTINATIONLOCAL | 1 | 0 | |
| Log Launcher Destination Server | LOGLAUNCHERESTINATIONSERVER | 1 | 0 | |
| Log Launcher Destination Trace | LOGLAUNCHERDESTINATIONTRACE | 1 | 0 | |
| Log Message Path | LOGMESSAGEPATH | Logs | Any valid, writable folder path | The location of the folder where the DataSmith log message files will be stored |
| Log Messages | LOGMESSAGES | 0 | 1 | Enables the logging of message information while running DataSmith - this should be set to zero unless you are debugging DataSmith |
| Log Path CM4D | LOGPATHCM4D | C:\Program Files\Applied Tech Systems\CM4D\ | ||
| Log Path DataSmith | LOGPATHDATASMITH | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path DataSmith Batch | LOGPATHDATASMITHBATCH | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path EventSmith | LOGPATHEVENTSMITH | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path Launcher | LOGPATHLAUNCHER | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path Results Launcher | LOGPATHRESULTSLAUNCHER | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path Results Service | LOGPATHRESULTSSERVICE | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Path Scheduler | LOGPATHSCHEDULER | C:\Program Files\Applied Tech Systems\CM4D\ | Any valid, writable folder path | |
| Log Results Launcher | LOGRESULTSLAUNCHER | none | all, errors, milestones, detail, developer | |
| Log Results Service | LOGRESULTSSERVICE | none | all, errors, milestones, detail, developer | |
| Log Scheduler | LOGSCHEDULER | none | all, errors, milestones, detail, developer | |
| Log Scheduler Destination Local | LOGSCHEDULERDESTINATIONLOCAL | 1 | 0 | |
| Log Scheduler Destination Trace | LOGSCHEDULERDESTINATIONTRACE | 1 | 0 | |
| Marker Color - Neutral | marker_color_default_neutral | 0x000000 | See also: Color Reference | See also: Document Feature Marker Colors |
| Marker Color - Nominal | marker_color_default_nominal | 16711935 | ||
| Marker Color - Good Value | marker_color_default_value_good | 255,0,0 | ||
| Marker Color - High Value | marker_color_default_value_hi | 0x0,0x0,0xFF | ||
| Marker Color - Low Value | marker_color_default_value_lo | 0xFF,0xFF,0x0 | ||
| Marker Color - Limits | marker_color_default_limits | 0x0,0xFF,0xFF | ||
| Marker Color - Distance X | marker_color_default_distance_x | 0xC0,0xC0,0xC0 | ||
| Marker Color - Distance Y | marker_color_default_distance_y | 0x0,0xFF,0x0 | ||
| Marker Color - Distance Z | marker_color_default_distance_z | 85,107,47 | ||
| Marker Color - Distance 3D | marker_color_default_distance_3d | 0,128,128 | ||
| Process Change Log Minimum Length | PCLMINLENGTH | 10 | Any integer | This parameter determines the number of characters that must be entered into the Comments dialog when Process Change Logging is enabled. If this parameter is not added to the Cm4d.ini file, PCL will work as before (requiring the default of at least 10 characters in the Comment dialog.) 0 = No character requirement |
| PDF Print Driver | PDFPRINTDRIVER | eDocPrinter | ATS CM4D Printer | Enter the type of PDF driver that is used to print PDF files from CM4D. |
| Print View Resolution [DEPRECATED as of v25] |
PRINTVIEWRESOLUTION | 1 | 0-3 | This is the DPI resolution of the view when printed. Correlates to the Snapshot View Resolution options.
|
| Results Export Batch Size | RESULTSEXPORTBATCHSIZE | 1000 | Any integer | The Results export batch size value is the number of results that will be grouped together in the Results Export Queue before they are sent to the Results Services. This is really only used for performance tuning. Generally, this number will not need to be adjusted. |
| Site SMTP Server (old EventSmith only) | SITESMTPSERVER | smtp.yourserver.com | Any valid SMTP Server | This value is the e-mail EventSmith Server uses. You can find this value by looking at Microsoft Outlook or Outlook Express at the server or any other computer where EventSmith Server is installed. If this server is not set, or cannot connect, the EventSmith Service will not start. Does not apply if using the default EventSmith SMTP included with the CM4D Server installation. |
| Site UNC | SITEUNC | 1 | 0 | Applies to filename paths for Managed Documents. 0= either local filename paths or UNC filename paths are allowed for managed documents 1= only UNC filename paths are allowed for managed documents |
| Timing Log Enabled | TIMINGLOGENABLED | 1 | 0 | When enabled, timing log files will be generated per session, and, in the case of DataSmith Batch, per thread. NOTE: To use the timing log, the "TIMINGLOGFORPERFORMANCE" option must be set to zero(turned off).The two timing log types cannot be used at the same time. |
| Timing Log Folder | TIMINGLOGFOLDER | C:\Program Files\Applied Tech Systems\CM4D\Timing | Any valid, writable folder path | If this is left blank, the Timing folder will be created wherever you have CM4D installed. If you would like the Timing log files to be stored someplace other than the installation folder, enter the path here. Both local and UNC paths are supported. |
| Timing Log for Performance | TIMINGLOGFORPERFORMANCE | 0 | 1 | Logs only performance information. For full timing logging, use "TIMINGLOGENABLED". NOTE: To use the timing for performance, the "TIMINGLOGENABLED" option must be set to zero (turned off). The two timing log types cannot be used at the same time. |
| Trace Level | TRACELEVEL | 1 | ||
| Units | units | mm | in | |
| Use Routine Codes for ID | UseRoutineCodesForID | 0 | 1 | When saving a CM4D document, any Routine identification within the Query must be preserved. By default, the Routine is identified by its Routine Key. However, if this parameter is set to 1, then the Routine will be identified by the Routine Code. |
