Available Services
The following services are available:
|
Name |
Description |
|
ATS Inspect CAD Conversion Service |
Map between Inspect image ID and stream cache model name and perform on-the-fly conversion when needed. |
|
ATS Inspect CAD Report Configuration Service |
Service for configuring Inspect CAD reports in ATS Reporting Portal. |
|
ATS Inspect CAD Report Content Server |
ATS Inspect CADReport ServerSelf-contained web server that delivers the CAD report content to ATS Reporting Portal. |
|
ATS Inspect CAD Report Service |
Provides functionality used by Inspect modules that need images from CAD models. |
|
ATS Inspect Communication Service |
Processes Inspect-related data received from Flat files, RS-232 and TCP/IP sockets, WebSphere MQ and MSMQ. |
|
ATS Inspect Data Service |
Handles requests to deliver data to various Inspect clients and services. |
|
ATS Inspect Event Service |
recognise, process and deliver events related to Inspect collected data. |
|
ATS Inspect Notification Service |
Output Inspect notifications to a range of different channels. |
|
ATS Inspect Travel Service |
Processes travel ticket requests. |
|
ATS Inspect Travel Print Service |
Prints travel ticket requests. |
Default port and startup settings
Service Connection Example

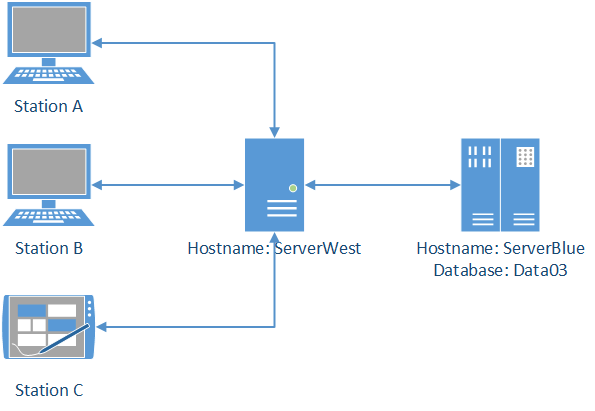

Let's say that three stations need to connect to the database using Data Service as follows.
The three stations connect to the same Data Service.
The Data Service then links to the database on another server.
Station to Data Service
The stations link to the Data Service using the config files for the applications. For instance, in Cockpit.exe.config it would say:
<dataServices>
<add name="Data03" server="ServerWest" bindingType="NetTcp" basePort="8500"/>
</dataServices>
The basePort number must be unique for each service on the same server. This number is set when the service is installed but can be modified later in the config file for the service.
The name field does not need to correspond to the name of the database.
Data Service to Database
The Data Service will link to the database (Data03) using the following lines in WcfDataServiceHost.exe.config:
<connectionStrings>
<clear/>
<add name="Inspect" providerName="SQLOLEDB" connectionString="Server=ServerBlue;Database=Data03;User Id=tom;Password=pass01;"/>
</connectionStrings>
The name field must be "Inspect" or the service will not work.
Change Connected Service or Database
There are two ways in which the database connection can be modified:
Change the service that is called from the application config file (Data Service only)
Change the Database that is called from the service config file
For information on how these connections can be modified see here.
If the data service is running and the licensing endpoint is changed the data service will continue to send its cached value until it is restarted.
Delayed Service Startup
If a service tries to start before a database is ready then it will fail. For this reason the services have a delayed startup time of 120 seconds:
If a service fails to startup automatically then please see the troubleshooting section for further assistance.
