The CM4D Results Service communicates with the Data Bus to process data from CM4D to generate results.

Dependencies:

User Requirements:

Startup Requirements:

Results Service Settings File

The Results Service Settings file is the configuration file for the Results Service. Default path:Default path: .\Applied Tech Systems\CM4D\CM4DResultsService.settings

Set the following:

port - This port is used by the Results Service and Results Launcher to communicate with one another. This port must match the port set in the Results Launcher settings.

serviceUser - The user that grants the service access to the database. This is typically the same as the CM4D Services user that is running the service.

Configuration Example

<CM4DResultsServiceSettings serviceUser="cm4dservice" port="36058"/>

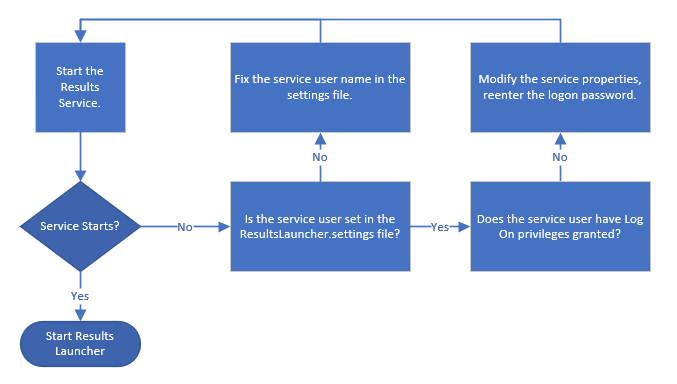

Results Service Startup Troubleshooting
