Install CM4D Results Services

This guide contains the detailed steps to installing and configuring the CM4D Results Services.

Results Services Deployments

The Results services are typically installed on the same machine as CM4D Server, but the Results services are a separate installer from CM4D Server to allow one or more of the services to be distributed to additional servers. To support scalability for larger organizations the services can run on a single computer or multiple computers, and multiple instances of each service can be added and distributed throughout your network. The Results services can be deployed as Windows services (default install option) or as docker images.

Only ONE instance of each of the three Results Services is supported per server.

The Results Loader service can work without any connection to the Site database (e.g. in the cloud connected via a RabbitMQ queue). The connection is entered during the installation of the service.

The Results Sender service includes configuration options for specifying Managed DataSources and processing options.

Installation Overview

This installation includes the following sections:

Run the CM4D Results Services Installer
1. Features and Install Folder - Select the Results services to install. Only ONE instance of each of the three Results Services is supported per server.
2. Export Root Folder - The path to the folder used by StreamCacheSmith to store 3D model files for CM4D Peruse that are exported from CM4D. The StreamCacheSmith service creates any necessary subfolders in this root location. HOOPS Communicator references this directory to load 3D Models in CM4D Peruse.
3. Configure Database Options - The connections strings for the CM4D Site Database and CM4D Results Database are the most important settings as they allow the services to connect to one another. Using the .4ds file provides both the Site and Results database connections.
4. Configure Transport and Persistence - The CM4D Results transport system uses NServiceBus for messaging between applications, databases and services. NServiceBus is a high-performance messaging system that provides the deployment and scaling options needed for large data throughput as well as supporting smaller installations.
5. Configure ServiceControl Queues - ServiceControl is a third-party application that supports the Results services communicating messages between the CM4D and Results databases.
6. Enter SQL Credentials for Site/Results Database - The configuration steps for entering the Site and Results database connection information is only required if you select the Database Connection option 'Specify Database Credentials'. And depending on the services you selected in the first part of the installer, you may see only the Site database connection screen or both the Site and Results database screens. If you are installing only the Results Sender service, the Results database connection is not required.
7. Enter SQL Credentials for Transport/Persistence - The configuration steps for entering the Transport and/or Persistence database connection information is only required if you select 'Other SQL Database' for the NServiceBus transport options.
Start Results Services - Start the three Results services.
Install and Configure ServiceControl Manager - NServiceBus (used by CM4D Results and EventSmith services) provides powerful error handling and monitoring tools. At a minimum, it is strongly recommended to use ServiceControl and ServicePulse. You need to configure at least one instance of ServiceControl and Auditing and one Monitoring instance for the transport method chosen during the installation of the Results service. If you are using SQL as your Transport method, ServiceControl Manager is required, as it creates the queue tables used by the CM4D services.

Quick Steps for Basic InstallQuick Steps for Basic Install

If you simply want to install one instance of the Results services to run local to your CM4D Server, select the following options during installation:

Keep the default Features and Install Folder - All Services; .\Program Files\Applied Tech Systems
Keep the default Export Root Folder - C:/temp
CM4D Database Options - Use .4ds File
NServiceBus Transport Options - Site Database
NServiceBus Persistence Options - Site Database
ServiceControl Queues - Use default labels

Run the CM4D Results Services Installer

Run the CM4D Results Services install executable (as Administrator).
Click Next.
Accept the terms of the Licensing Agreement.
Click Next.

Features and Installation Folder

The default options provided installs the Results Sender, Results Loader and StreamCacheSmith Windows Services to C:\Program Files\Applied Tech Systems\ATS CM4D Results Services\.
1. Features: By default, all three services are selected. Only ONE instance of each of the three Results Services is supported per server. To change which service to install, uncheck the unwanted options:
  - ATS CM4D Results Sender - Install the CM4D Results Sender service. The Results Sender service processes the data events from CM4D, extracts the data from the databases and sends the data to Results Loader. In the case of a modified CAD image, a message is sent to the StreamCacheSmith service. This service requires a connection to the CM4D Site database and the Transport/Persistence database(s).
  - ATS CM4D Results Loader - Install the CM4D Results Loader service. The Results Loader service updates the Results database with minimum database locks. This service requires a connection to the CM4D Results database and the Transport/Persistence database(s).
  - ATS CM4D StreamCacheSmith - Install the StreamCacheSmith service. The StreamCacheSmith service converts 3D CAD images into the HOOPS streaming format used by web applications such as CM4D Peruse. The stream cache images are stored in the Site database and streamed to clients as-needed for rendering on the client-side HOOPS Viewer. This service requires a connection to the CM4D Results database and the Transport/Persistence database(s) and must be installed on the same machine as the HOOPS Communicator Server.
2. Installation Folder: By default, the selected services are installed to C:\Program Files\Applied Tech Systems\ATS CM4D Results Services\. To change the installation folder, go to the Installation Folder tab and either enter a folder path or browse to a folder.
Click Next.

Export Root Folder

The path to the folder used by StreamCacheSmith to store 3D model files for CM4D Peruse that are exported from CM4D. The StreamCacheSmith service creates any necessary subfolders in this root location. HOOPS Communicator references this directory to load 3D Models in CM4D Peruse.

Type or click Browse to select the folder you want to use as the Export root folder.
Click Next.

Configure Database Options

The connections strings for the CM4D Site Database and CM4D Results Database are the most important settings as they allow the services to connect to one another.

Results Sender Service - Requires the database connection string for NServiceBus transport/persistence and the CM4D Site database connection string.
Results Loader/StreamCacheSmith Services - Require the database connection string for NServiceBus transport/persistence and the CM4D Results database connection string.

If CM4D is installed on the same machine, the database connections are typically set via the CM4D.4ds file. However, this is not the case for Docker containers where the settings are typically set via environment variables. The Results Loader service can work without any connection to the CM4D Site database (e.g. in the cloud connected via a RabbitMQ queue) if the CM4DDSFilePath parameter it is explicitly set in the appsettings.json or via an environment variable.

Select the method by which the services connect to the CM4D databases.
- Use .4ds File - If CM4D is installed on this machine, the services obtain database connection information from the DbConnect database connection file (CM4D.4ds) registered on the local system. The 4ds file provides both the Site Connection and the Results database connection strings to the Results Services.
- Specify Database Credentials - If CM4D is not installed on this machine, manually enter the database connection information during the installation. Later steps in this installation prompt manual entry of the database connection information for both the Site and the Results databases.
Click Next.

Configure NServiceBus Transport Options

The CM4D Results transport system uses NServiceBus for messaging between applications, databases and services. NServiceBus is a high-performance messaging system that provides the deployment and scaling options needed for large data throughput as well as supporting smaller installations.

Configure the same database for the ServiceControl configuration you are using.
1. Select the Transport option:
  1. For Site databases, the database connection information is obtained either from the 4ds file or entered in one of the next steps.
  2. For SQL databases, the database connection information is entered in one of the next steps.
  3. For RabbitMQ, enter a database connection string that includes the host, username, password and a virtual host.
  4. For Azure Storage Queue, enter the database connection string: DefaultEndpointsProtocol=https;AccountName=ACCOUNTNAME;AccountKey=ACCOUNTKEY
2. Select a Persistence option:
  1. For Site databases, the database connection information is obtained either from the 4ds file or entered in one of the next steps.
  2. For other SQL databases, the database connection information is entered in one of the next steps.
Click Next.

Transport OptionsTransport Options

The NServiceBus transport is the way the messages are sent from one node to another. The system can be a distributed deployment, such as a local CM4D Site database and a cloud-based Results database. There are multiple transport options available.

Site/SQL Database - The SQL transport uses database tables to implement the message queues that connect the different services. This service is simple to configure as it can use the SQL Server that is used for CM4D databases. However, it does not provide the same throughput and scalability as other transport options.
RabbitMQ - RabbitMQ is a high-performance open-source message broker with wide industry usage. RabbitMQ can be installed on-premises on a server, as a container or used as a service at service providers like CloudAQMP. The free plan is sufficient to test this transport. A RabbitMQ connection string requires a host, username, password and a virtual host. RabbitMQ has a message size limit of 2GB.
Azure Storage Queue - Azure storage queues are a transport option for cloud-based or hybrid deployments. This option requires an Azure Storage Account. The connection string can be copied from the Azure storage account access key page. Azure has a message size limit of 64KB.

PersistencePersistence

Information about messages might need to be stored to ensure transactional consistency of long-running transactions. The persistency configuration defines where the data is stored. It is recommended to store it in the CM4D Site database, but another database can be configured if necessary. Additional persistency options will be available in future releases.

Configure NServiceBus Service Control

Enter the name of the database queue tables for ServiceControl monitoring. These Queue labels must match what is defined as the Subscription Table in the connection string entered when configuring ServiceControl instances.
Click Next.

Transport Queues/Subscription TablesTransport Queues/Subscription Tables

The Transport Queues are database tables created by ServiceControl where the Results services store monitoring information for ServiceControl. In ServiceControl Manager, these tables are specified as the Subscription Table in the transport connection string of each instance. Please note that some transport types (e.g., Azure Storage Queues) may have label formatting restrictions. See here for more information.

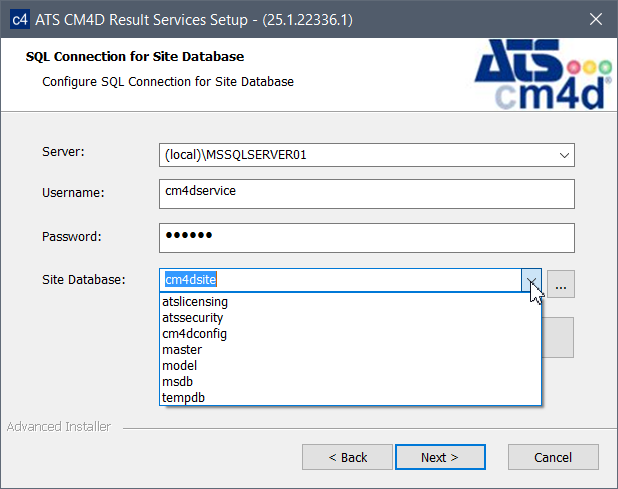

Configure SQL Connections for Site/Results Transport Options

If you selected 'Use .4ds File', the installer skips this screen. Continue to the next section.

The configuration steps for entering the Site and Results database connection information is only required if you selected the Database Connection option 'Specify Database Credentials'. And depending on the services you selected in the first part of the installer, you may see only the Site database connection screen or both the Site and Results database screens. If you are installing only the Results Sender service, the Results database connection is not required.

Enter the connection information for the database.
1. Enter the fully qualified server name of the SQL Server database host machine, including the instance name.
2. Enter the login credentials of the SQL authentication user accessing the Site database.
3. Click the ellipses () to load the available databases.
  1. Open the dropdown menu and select the database.
  2. Click Test SQL Connection.
Once you have a successful connection, click Next.

Configure SQL Connection for Transport/Persistence Databases

If you selected Site, RabbitMQ or Azure for your transport options, the installer skips this screen. Continue to the next section.

The configuration steps for entering the Transport and/or Persistence database connection information is only required if you selected 'Other SQL Database' for the NServiceBus transport options.

Enter the connection information for the database.
1. Enter the fully qualified server name of the SQL Server database host machine, including the instance name.
2. Enter the login credentials of the SQL authentication user accessing the Site database.
3. Click the ellipses () to load the available databases.
  1. Open the dropdown menu and select the database.
  2. Click Test SQL Connection.
Once you have a successful connection, click Next.

Finish the Install

Click Install to complete the installation.

Start Results Services

Open Control Panel > Administrative Tools > Services.
Start the three Results services.

For new installations, the first service may not start if you are using a service user account that has never been granted the Log On As A Service rights. Re-enter the Log On credentials and try to start the service again.

Install and Configure ServiceControl Manager

NServiceBus (used by CM4D Results and EventSmith services) provides powerful error handling and monitoring tools. At a minimum, it is strongly recommended to use ServiceControl and ServicePulse. You need to configure at least one instance of ServiceControl and Auditing and one Monitoring instance for the transport method chosen during the installation of the Results service. If you are using SQL as your Transport method, ServiceControl Manager is required, as it creates the queue tables used by the CM4D services.

ServiceControl - Collects data from endpoints (CM4D Services); creates SQL queue tables.
ServicePulse - A web-based application to inspect failed messages and resubmit them and to monitor the availability and performance of endpoints.
ServiceInsight - Supports auditing of message details but has a major performance impact.

The downloads and installation instructions for the NServiceBus applications can be found on the Particular Software website.

See the topic Configure ServiceControl Manager for more details.
