Topic Contents: Hide

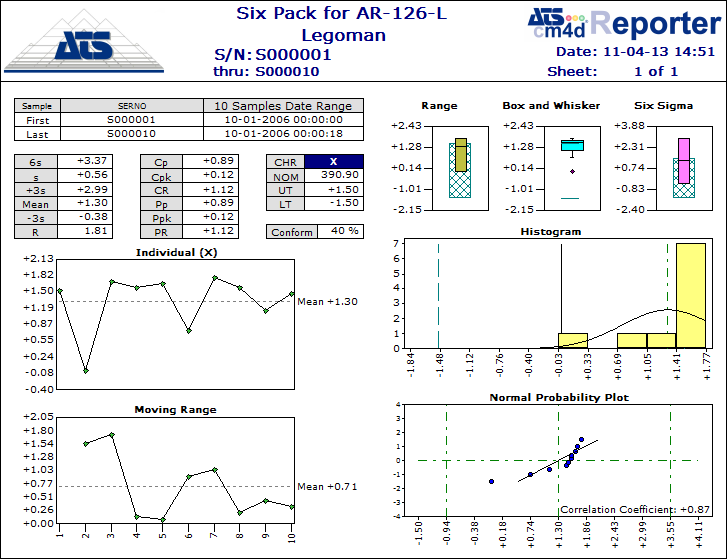

Once you have started CM4D Reporter and loaded data, you are ready to view your data in reports.
1. The default report used is called Single.

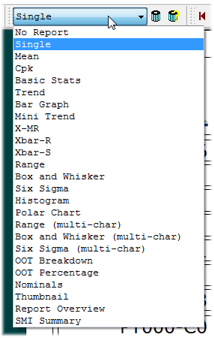

2. To view a different report layout for your data, select a Report from the Report Type drop down menu to view the report displaying the loaded measurement data.
3. If you are familiar enough with your data, you can also use the Sift Rules options to refine your loaded data.
a. Click the Sift Rules (
) icon, set the options you want to use, and click OK.
Drilldown Reports are further refinements of a single annotation which display the data for that feature in several types of charts, graphs, and tables on a single sheet.
1. To view a drilldown report of a single feature, double-click the annotation for which you want to view the Drilldown report.
2. To return to the main report, double click anywhere within the sheet, or use Backspace on the keyboard.
To learn how to manipulate the sheet area or view image in a report using the mouse buttons, refer to the topic Mouse Controls.
